KLK More Info
Customer interface:
Touch screen: Surface acoustic wave or five-wire resistive 15.1/17.1/19./20.1/21.31 inch touch screen; resolution: 4096x4096
Monitor: 15.1 inch/17.1 inch/19.1/20.1/21.3inch LCD TFT monitor; maximum resolution 1600x1200
Control system:
Special PC:Core2.0G/1G/160G.
EMS memory: DDR256M Others: video card/net card/multi-media (could be made at the request of customers); open the side door to expose optical drive, floppy disk drive, ATX switch and audio switch.
Multi-media system:
Amplifier system; stereo Loudspeaker; magnetic-proof
Port:
There are standard PC slots, and all the ports could be offered.
Power supply:
Input: AC220V+-100‰、50Hz+-50‰
Card processor (for selection):
Card reader: ISO standard card/IC card
Printer (for selection):
Automatic paper cut micro printer
Color and dimension:
Cabinet: Steel;
Metallic paint

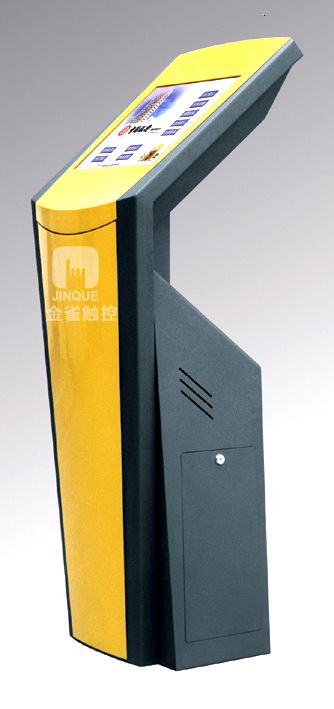

Color: See picture (could be painted at the request of customers)
Height: 1320 mm;
Width: 500 mm Depth: 300 mm
Software (for selection):
Operating system: Windows95/98, WindowsNT/2000
Application software: Chosen by the customers.
|
|
| |
| Model |
Computer |
Cabinet |
Monitor |
Dimension |
Touch screen |
Code |
| KLK |
Special-purpose industrial computer chassisCPU ：Core2.0G/1G/160G52 speed optical disk drive; floppy disk drive video card |
Steel; metallic baking paint |
LCD professional monitor |
15.1 inch |
Four-wire resistive screen |
KLK150C |
| surface acoustic wave screen |
KLK150G |
| five-wire resistive screen |
KLK150Ca |
| IRTouch infrared touch screen |
KLK150H |
| 17.1 inch |
Four-wire resistive screen |
KLK170C |
| IRTouch infrared touch screen |
KLK170H |
| surface acoustic wave screen |
KLK170G |
| five-wire resistive screen |
KLK170Ca |
| 19.1 inch |
Four-wire resistive screen |
KLK190C |
| IRTouch infrared touch screen |
KLK190H |
| surface acoustic wave screen |
KLK190G |
| five-wire resistive screen |
KLK190Ca |
| 20.1inch |
Four-wire resistive screen |
KLK200C |
| IRTouch infrared touch screen |
KLK200H |
| surface acoustic wave screen |
KLK200G |
| five-wire resistive screen |
KLK200Ca |
| 21.3inch |
IRTouch infrared touch screen |
KLK210H | |
"金雀"KLK系列触摸查询一体机，是我公司最新开发的高级液晶触摸查询及上网设备。适用于 15.1、17.1、18.1等不同尺寸的液晶触摸屏，是大屏幕液晶触摸查询一体机中的精品。
1. KLK的外观针对大屏幕液晶触摸查询一体机设计，其机身正面采用中间亮色、两侧暗色，且亮色部分上宽下窄，暗色部分上窄下宽，这样通过色彩和线条的鲜明对比，克服了同尺寸的KLB等其他老机型，机身正面过宽且直上直下，臃肿呆板的缺陷。再加上其略微前倾的机身设计，更符合人体工程学，使您查询起来轻松惬意，亲切自然。
2. KLK采用整机结构一体化设计，因此无论从机身的造型，LCD面板和主机的位置固定，控制电路的走线及各种进线都经过了精心严格的设计。机身主体采用3mm厚冷轧钢板，整个机柜全部采用数控工艺精制而成。与其他机型相比占地面积更小而站立的稳定性更好。
3. KLK机型的计算机主机放在机柜的下部，可放置我公司配套设计的工控主机机箱，该机箱使用1.2mm镀锌钢板全数控工艺制成，采用开放式钢架结构，配有工业级电源和风扇，拥有超凡的稳定性和散热性，与KLK机身可以轻松的紧固，浑然一体。该机箱可以安装各种型号的主板、CPU及其他配件，拆装均很方便。
4. KLK一体机维护非常的简单,上部LCD面板从后方单独开门，通过精巧的结构过度件可以方便的安装和拆卸各种LCD显示模块及触摸屏。在一体机的下部箱体部分内部空间充裕，其两侧开有两个小门，正后方开有一个较大的门。打开两侧门即可露出主机的光驱、软驱及各种接线。打开正后方的大门可露出整个工控机箱中的主板、CPU、硬盘等部件，这样就很方便的进行软硬件的安装调试与维护升级。另外该款机柜的主机也可选配体积较小的品牌机或兼容机。
5. KLK机型充分考虑到了多种功能的需求，在设计的同时预留了足够空间，在保持外观完整的前提下，可以安装IC卡读写器、磁卡阅读器、微型打印机等多种外设。这样克服了KLB等老机型只能单纯查询信息，而不能输入信息、打印凭证的缺点。因此KLA型一体机在功能上更加趋于完善。
KLK一体机属于我公司专利产品，具有外观专利自主权。
KLK一体机已被信息产业部办公大楼，北京火车站等重要场所采用！
|
