Your present position:Index >> >> KLA Series

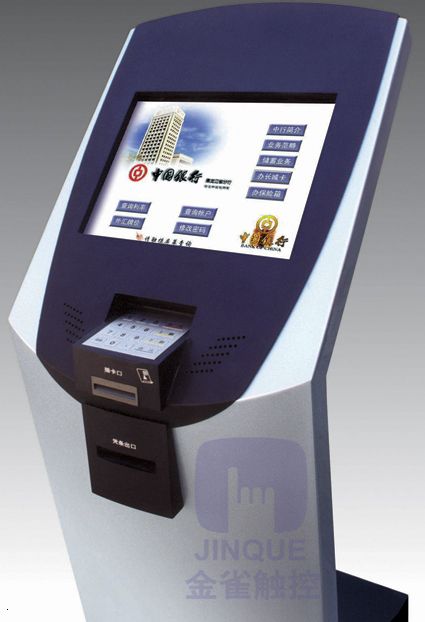

  KLA Series View:13175

 KLA  More Info




  Customer interface:
Touch screen: Surface acoustic wave or five-wire resistive and four-wire resistive 15.1/17.1/18.1 inch touch screen; infrared, resolution 977×737

Control system:
Special PC: CPU Core2.0G; Hard disk 160G.
Internal memory: DDR1G
Others: video card/net card/multi-media (could be made at the request of customers)

There is a small door at the rear part, which can expose optical drive, floppy disk drive; ATX switch and audio switch.

Multi-media system:
Amplifier system: stereo Loudspeaker;
magnetic-proof

Port:
There are standard PC slots , and all the ports could be offered.

Power supply:
Input: AC220V+-100‰、50Hz+-50‰

Card processor (for selection):
Card reader: ISO standard card/IC card

Printer (for selection):
Automatic paper cut micro printer

Color and dimension:
Cabinet: Steel: metallic paint

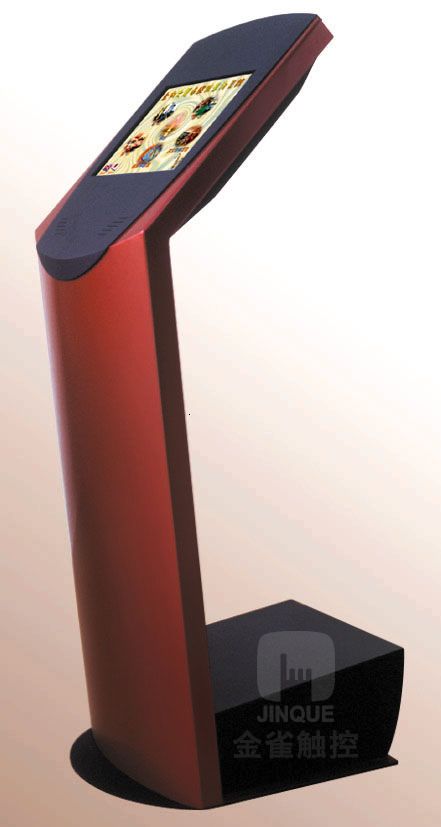

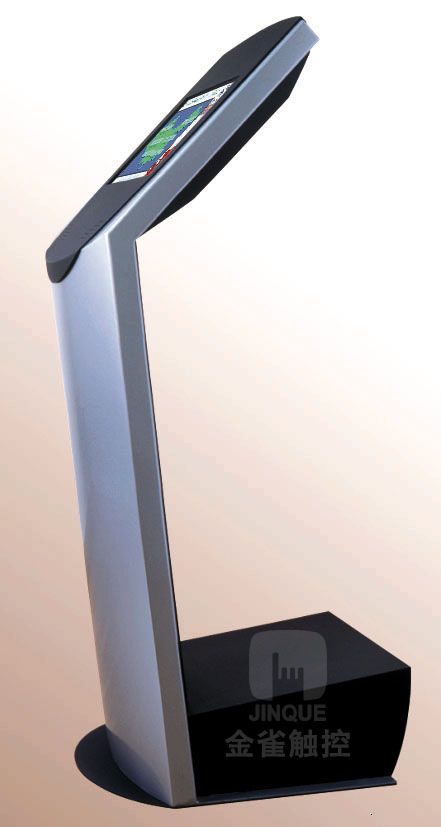

Color: See picture (could be painted at the request of customers)
Height: 1380 mm Width: 430 mm
Depth: 600 mm Net weight: 65 Kg

Software (for selection):
Operating system: Windows95/98, WindowsNT/2000
Application software: Chosen by the customers.




Model Computer Cabinet Dimension Monitor Touch screen Code
KLA Special-purpose industrial computer chassisCPU :Core2.0G DDR1G internal memory160G hard disk52 speed optical disk drive
videocard
10M/100M video card
Steel; metallic baking paint 15.1inch LCD professional monitor IRTouch infrared touch screen KLA150H
surface acoustic wave screen KLA150G
Four-wire resistive screen KLA150C
five-wire resistive screen KLA150Ca
17.1 inch LCD professional monitor Four-wire resistive screen KLA170C
five-wire resistive screen KLA170Ca
IRTouch infrared touch screen KLA170H
surface acoustic wave screen KLA170G
18.1inch LCD professional monitor Four-wire resistive screen KLA180C
five-wire resistive screen KLA180Ca
IRTouch infrared touch screen KLA180H
surface acoustic wave screen KLA180G




"金雀"KLA系列触摸查询一体机是金雀具有自主外观专利权的高档液晶触摸查询及上网设备。适用于 15.1、17.1、19.1、20.1四种不同尺寸的液晶触摸屏。可选装多种外设,真正实现人机交互。无论从外观、工艺、质量上都是客户的首选产品。

1: KLA外观设计符合人体工程学,从侧面看很象昂首欲飞的"小天鹅",显得高贵、典雅。从前面看,有着优美圆弧的机身圆润饱满秀丽挺拔,机身略微前倾给顾客以亲切体贴的感觉,查询起来更方便舒适,和其他老机型如KLB相比,一改扁平、单薄、生硬的外观,显得极为生动活泼,使顾客更乐意在查询一体机前停留。
2: KLA采用整机结构一体化设计,因此无论从机身的造型、,LCD面板和主机的位置固定,控制电路的走线及各种进线都经过了精心严格的设计。机身主体采用3mm厚冷轧钢板,整个机柜全部采用数控工艺精制而成。其重心比KLB等老机型低,站立稳定性更好。
3: KLA机型的计算机主机放在机柜的下部,可放置我公司配套设计的工控主机机箱,该机箱使用1.2mm镀锌钢板全数控工艺制成,采用开放式钢架结构,配有工业级电源和风扇,拥有超凡的稳定性和散热性,与KLA机身可以轻松的紧固,浑然一体。该机箱可以安装各种型号的主板、CPU及其他配件,拆装均很方便。
4:KLA一体机维护非常的简单,上部LCD面板从后方单独开门,可以方便的安装和拆卸各种规格的LCD显示模块及触摸屏。在一体机的下部只要打开后方的单独小门,就可以露出一体机总开关,音响调节及主机光驱、软驱,对主机进行简单的操作;另外打开专用锁后可使整个下部箱体沿轨道向后出,露出工控机箱和装在其中的主板、CPU、硬盘,以便进一步进行维修升级操作,松开四个紧固螺丝即可方便的取出工控主机箱。我公司新开发出的17.1/18.1KLA机型下部空间较大,如果不用我公司专用工控机箱也可采用体积较小的品牌机或兼容机。相比KLB等老机型,只有把后部箱体全拆开才可进行基本的操作来说要简单容易的多。
5:KLA机型充分考虑到了多种功能的需求,在设计的同时预留了足够的空间,在保持外观完整的前提下,可以选装IC卡读写器、磁卡阅读器、金属小键盘、微型打印机等多种外设。这样克服了KLB等老机型只能单纯查询信息,而不能输入信息、打印凭证的缺点。真正实现人机交互
6:KLA型机柜曾在2001年香港国际专利博览会中获得金奖,受到很多专业人士的认可和称赞。

典型案例:因其外观高贵典雅,设计新颖独特,做工精湛,功能强大,中国移动总公司已多次在中国国际电信展的主展台及国际电信日巡展中展示!并在北京电信、移动的各个营业厅,北京养路费征稽所全市各营业厅,河北移动,河南移动,宁夏电信,中国国际广播电台,成都市政府等各行业大量采用!
